Feeding granularity: 50-1300mm
Production capacity: 160-950t / h
Adapt to materials:
Limestone, sandstone, coke, coal gangue, raw coal, gypsum, slag, coke, etc.
Application areas:
Widely used in mining, smelting, building materials, highways, railways, water conservancy and chemical industries.
- Introduction

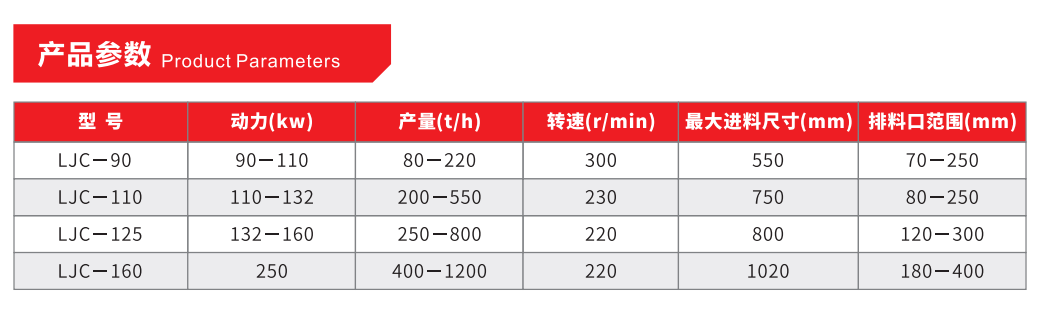

- parameters
This series of products is a new generation of products developed by our company, using deep cavity shape symmetrical crushing chamber design, to maximize the feed size, output and crushing ratio. The moving jaw is made of high quality cast steel and driven by large cast iron pulley and flywheel. Its good balance makes the crusher without anchor bolt installation, integrated motor installation, widely used in all kinds of the hardest and highly corrosive mineral rock crushing operations.
1. Adopt cutting-edge manufacturing technology and high-end materials.
2. The moving jaw assembly is made of high quality cast steel, and the heavy eccentric shaft is processed by forging billet, which makes the machine have extraordinary reliability and more durable.
3. The bearing block adopts integral cast steel structure to ensure complete coordination with the crushing frame and greatly enhance the radial strength of the bearing block.
4. The crushing chamber adopts symmetrical "V" shape structure, so that the actual feed inlet width is consistent with the nominal feed inlet width.
5. Wedge outlet adjustment device is installed, which is simpler, safer and faster than the old gasket adjustment.
6. All the machines in this series are selected with larger and more durable eccentric shaft bearings than other crushers of the same specification. Its higher bearing capacity and effective labyrinth seal greatly prolong the service life of bearings.
7. The latest use of toothed guard plate, increase the effective length of the jaw plate, improve production;
8. Centralized oil supply, convenient maintenance.
